GSM25B05-P1J

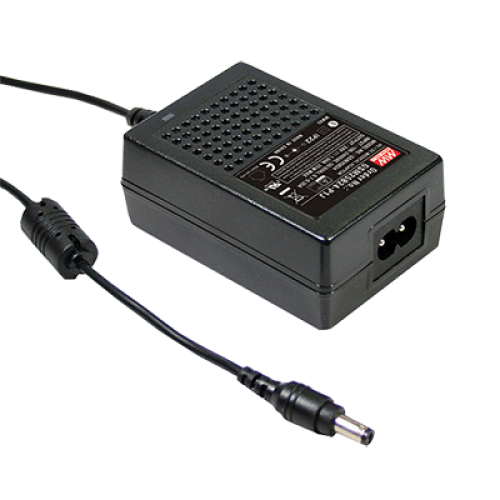

20W 5VDC 4A Green Medical C8 Desktop Adapter Please ring us to discuss a great price for this product.Product Features
- Energy efficiency Level VI and meet CoC version 5 (except 5~9V for Level V)
- 2 pole AC inlet IEC320-C8, Class II power unit
- 25°C to +60°C wide range working temperature
- 3 years warranty
- Extremely low leakage current
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1/-1-11, BS EN/EN60601-1/-1-11
- No load power consumption < 0.1W
- Protections: Short circuit / Overload / Over voltage
Description
GSM25B is a highly reliable, 25W desktop style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard IEC320-C8 power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 × MOPP), having an ultra low leakage current (
