GSM220A24-R7B
221W 24VDC 9.2A Green Medical C14 Desktop Adapter Please ring us to discuss a great price for this product.Product Features
- 30°C ~ +70°C wide range working temperature
- No load power consumption < 0.15W
- Energy efficiency level VI and meet CoC Version 5
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- 3 years warranty
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 3 pole AC inlet IEC320-C14, Class I power unit
- Extremely low leakage current
Description

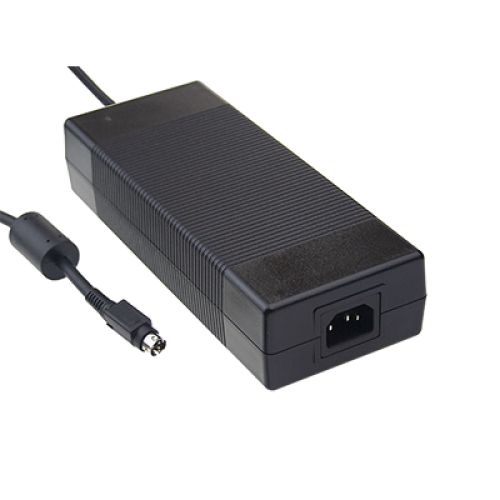

The GSM220A24-R7B is a 220W 24V single-output medical power supply adaptor. This product is equipped with a 3-pin standard IEC320-C14 power plug and an input range of 80V DC to 264V DC. The series supplies different models with output voltages ranging between 12V DC and 48V DC that can satisfy the demands for various kinds of medical devices. With an efficiency of up to 94.5% and an extremely low no-load power consumption of below 0.15W, the GSM220A series is compliant with EIS7 2007/DoE Canada, NRCan, Australia, and New Zealand MEPS, EU ErP, meets Code of Conduct (CoC) Version 5, and the international medical standards. The supreme feature allows the adaptor to save energy when it is either in operation mode or standby. The entire series utilises the 94V-0 flame-retardant plastic case.
