GSM40B05-P1J

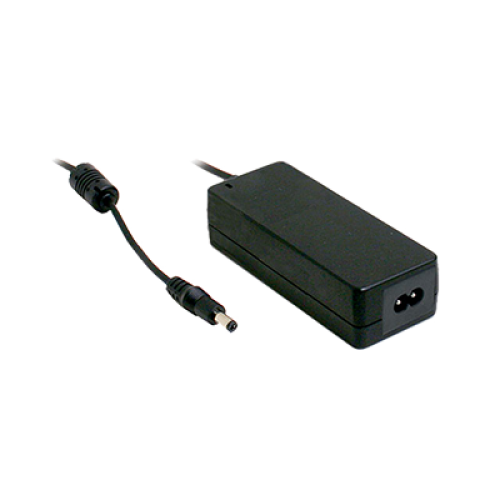

25W 5VDC 5A Green Medical C8 Desktop Adapter Please ring us to discuss a great price for this product.Product Features
- Protections: Short circuit / Overload / Over voltage
- Extremely low leakage current
- No load power consumption < 0.1W
- 30°C ~ +70°C wide range working temperature
- 3 years warranty
- Energy efficiency Level VI and meet CoC Version 5 (Except 5~9V for Level V)
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-11
- 2 pole AC inlet IEC320-C8, Class II power unit
Description
GSM40B05-P1J is a highly reliable 40W desktop style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard IEC320-C8 power plug, adopting the input range from 80VAC to 264VAC. The GSM40B05-P1J supplies an output voltage of 5VDC, which can satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards, having an ultra low leakage current, fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 81% and the extremely low no-load power consumption below 0.1W, GSM40B05-P1J is compliant with USA EISA 2007/DoE Canada NRCan Australia and New Zealand MEPS EU ErP and meets Code of Conduct Version 5. The supreme feature allows the adaptor to save energy when it is either in the operating mode or the standby mode. The entire series utilises the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock.GSM40B05-P1J is approved with the international medical safety certificates. For more information and to discuss your requirements, please contact us.
