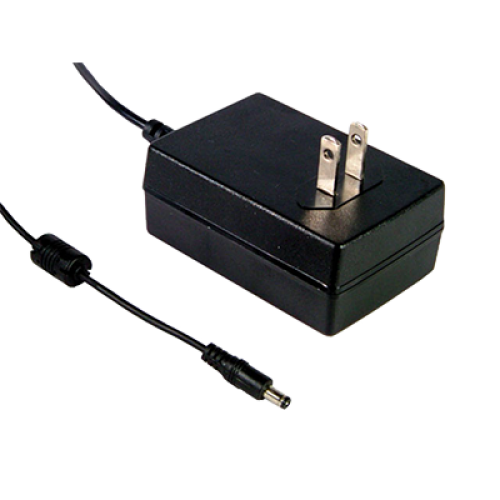

GSM25U09-P1J
25W 9VDC 2.77A Green Medical US Plugtop Adapter Please ring us to discuss a great price for this product.Product Features
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1/-1-11
- 25°C to +60°C wide range working temperature
- Energy efficiency Level VI (except 5~9V for Level V)
- Extremely low leakage current
- 2 pole USA plug, Class II power unit
- 3 years warranty
- No load power consumption < 0.1W
- Protections: Short circuit / Overload / Over voltage
Description
The GSM25U09-P1J 25W 9V wall-mounted style single-output green medical adaptor. This unit is equipped with a 2-pin (no FG) standard USA AC power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra-low leakage current (
