GSV30E24-P1J

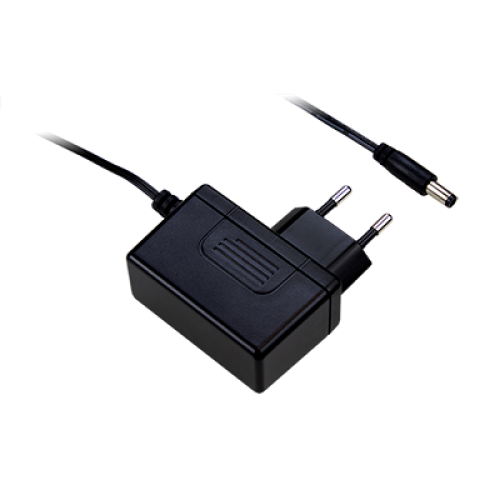

30W 24VDC 1.25A PFC LED EURO Plugtop Adapter Please ring us to discuss a great price for this product.Product Features
- AC 180~264V input
- Built-in active PFC function with EN61347-1 regulation
- 3 years warranty
- Constant voltage design
- Protections: Short circuit / Over load / Over voltage
- Class II / 2 power unit, no FG
- No load power consumption < 0.5W
- Cooling by free air convection
Description
GSV30 series is a 30W external wall-mounted LED power supply with PFC function. The design of this product is based on the “plug and play” concept for adaptors. The AC input side exploits the 2-Pole (Class II, no FG) standard plug, and the output side is equipped with the highly accepted DC connector (2.1x5.5x11mm) in the market. This product accepts 180~264VAC input and offers constant voltage output with 12V / 24V or 48V.The design complies with the lighting requirements of EMI BS EN/EN55015 and the harmonic current demand according to BS EN/EN61000-3-2 Class C. In addition, the no-load power consumption is less than 0.5W, making GSV30 conform to the ErP regulation required by the European Union for lighting systems as well.
