GSM36U12-P1J
36W 12VDC 3A Green Medical US Plugtop Adapter Please ring us to discuss a great price for this product.Product Features
- No load power consumption < 0.1W
- Protections: Short circuit / Overload / Over voltage
- 2 pole USA plug, Class II power unit
- Extremely low leakage current
- 25°C to +60°C wide range working temperature
- 3 years warranty
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1/-1-11
- Energy efficiency Level VI (except 5~9V for Level V)
Description

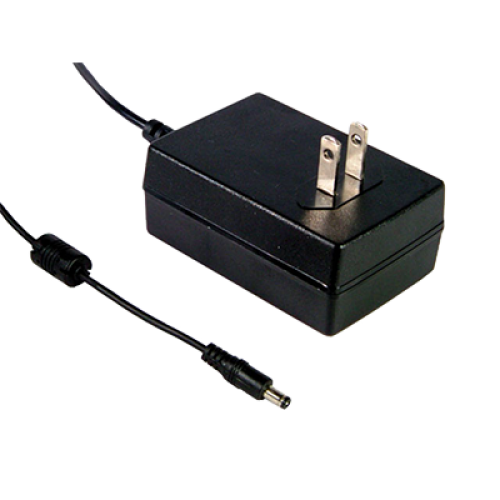

The GSM36U12-P1J is a 36W 12V wall-mounted style single-output green medical adaptor. This unit is equipped with a 2-pin (no FG) standard USA AC power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra-low leakage current (
