GSM36U24-P1J

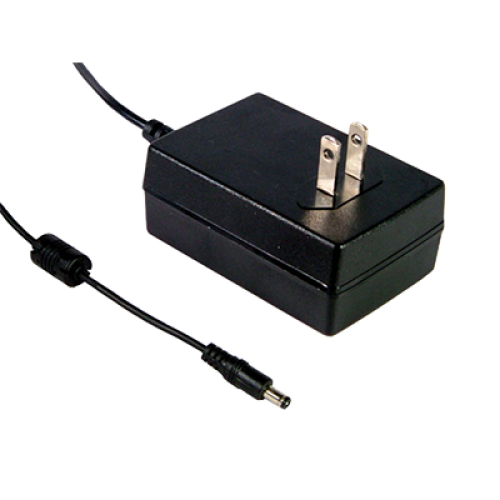

36W 24VDC 1.5A Green Medical US Plugtop Adapter Please ring us to discuss a great price for this product.Product Features
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1/-1-11
- Energy efficiency Level VI (except 5~9V for Level V)
- 2 pole USA plug, Class II power unit
- No load power consumption < 0.1W
- Protections: Short circuit / Overload / Over voltage
- Extremely low leakage current
- 25°C to +60°C wide range working temperature
- 3 years warranty
Description
The GSM36U24-P1J is a 36W 24V wall-mounted style single-output green medical adaptor. This unit is equipped with a 2-pin (no FG) standard USA AC power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra-low leakage current (
