GSM40A48-P1J

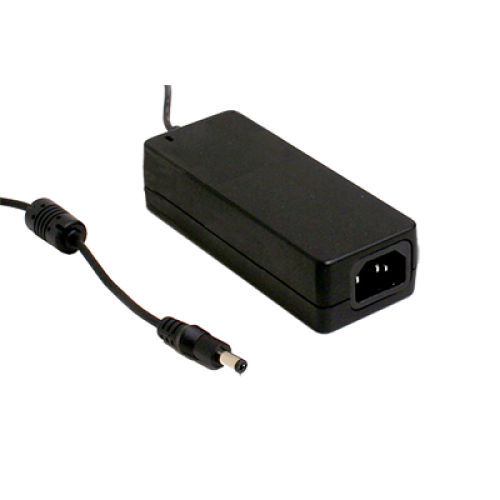

40W 48VDC 0.84A Green Medical C14 Desktop Adapter Please ring us to discuss a great price for this product.Product Features
- Extremely low leakage current
- Protections: Short circuit / Overload / Over voltage
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- Energy efficiency Level VI and meet CoC Version 5 (Except 5~9V for Level V)
- 3 pole AC inlet IEC320-C14, Class I power unit
- 30°C ~ +70°C wide range working temperature
- 3 years warranty
- No load power consumption < 0.15W
Description
GSM40A is a highly reliable, 40W single-output green medical adaptor series. This product is a Class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 80VAC to 264VAC. The entire series supplies different models with output voltages between 5VDC and 48VDC that can satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2 × MOPP), having an ultra low leakage current (
