GSM90A12-P1M

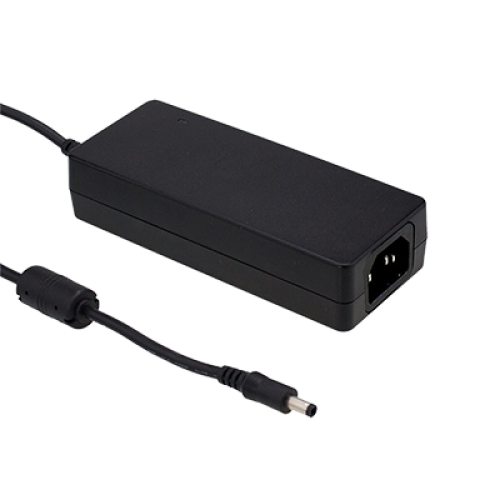

80W 12VDC 6.67A Green Medical C14 Desktop Adapter Please ring us to discuss a great price for this product.Product Features
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 3 years warranty
- 30~+70°C wide range working temperature
- 3 pole AC inlet IEC320-C14, Class I power unit
- Energy efficiency level VI and meet CoC Version 5
- Lifetime > 130K hours
- Medical safety approved (2 x MOPP)
- LED indicator for power on
- Extremely low leakage current
- No load power consumption <0.15W
Description
GSM90A12-P1M is a highly reliable 90W desktop style single output green medical adaptor series. This product is equipped with a 3-pin (with FG) standard IEC320-C14 power plug, adopting the input range from 80VAC to 264VAC and an output voltage of 12V that can satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards, having an ultra low leakage current, fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 88% and the extremely low no-load power consumption below 0.15W, GSM90A12-P1M is compliant with USA EISA 2007/DoE Canada NRCan Australia and New Zealand MEPS EU ErP and meets Code of Conduct version 5. The supreme feature allows the adaptor to save energy when it is either in the operating mode or the standby mode. The entire series utilises the 94V-0 flame retardant plastic case. GSM90A12-P1M is approved with the international medical safety certificates. For more information and to discuss your requirements, please contact us.
