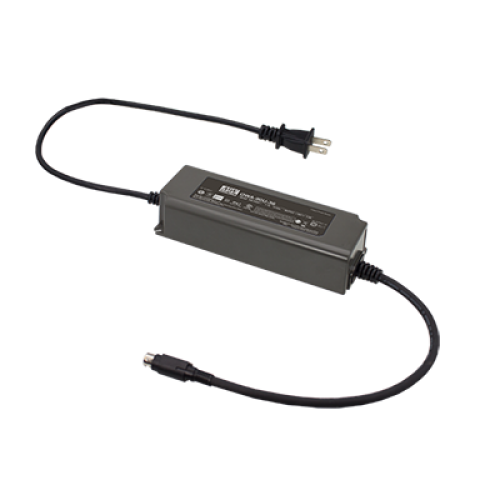

OWA-90U-15
90W 15VDC 6A US Moistureproof Adapter with 4 Pin DIN Please ring us to discuss a great price for this product.Product Features
- Built-in active PFC function
- Energy efficiency Level VI
- UL LISTED, suitable for dry and damp locations
- Universal AC input / Full range
- Class 2 power unit (except OWA-90U-12/15)
- Class II power unit, no FG
- Comply with EISA 2007 DoE and NRCan
- No load power consumption < 0.15W
- Fanless design, cooling by free air convection
- 5 years warranty
- High efficiency up to 91%
- Protections: Short circuit / Over current / Over voltage / Over temperature
Description
OWA-90U is a 90W single-output external LED power supply series. Pairing the North American type of AC plug and the prevailing DC connectors, OWA-90U, working like an adaptor, simplifies the connection with LED lighting fixtures without extra wiring efforts. The entire series is certified with the “UL LISTED” for dry and damp locations. As a class II (without earth pin) design, the enclosure of OWA-90U is a 94V-0 flame retardant plastic case. The interior is fully potted with silicone that enhances the heat dissipation. With the working efficiency up to 91%, OWA-90U is cooled by free air convection; the working temperature ranges from -40°C to +70°C.
