GSM90B24-P1M

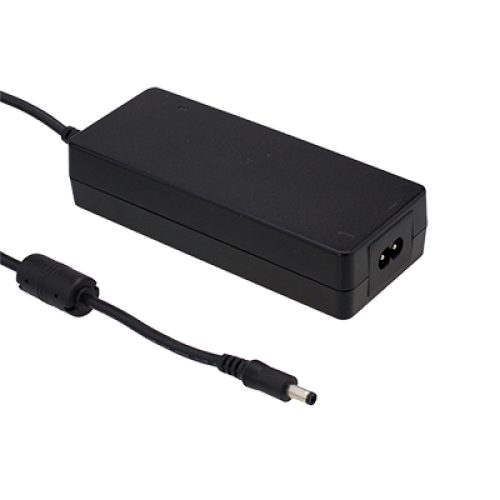

90W 24VDC 3.75A Green Medical C8 Desktop Adapter Please ring us to discuss a great price for this product.Product Features
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 3 years warranty
- LED indicator for power on
- No load power consumption < 0.15W
- Medical safety approved (2 × MOPP)
- Energy efficiency level VI and meet CoC Version 5
- 2 pole AC inlet IEC320-C8, Class II power unit
- Lifetime > 90K hours
- 30°C ~ +70°C wide range working temperature
- Extremely low leakage current
Description
GSM90B is a highly reliable, 90W desktop style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard IEC320-C8 power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 12VDC and 48VDC that can satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2 × MOPP), having an ultra low leakage current (
