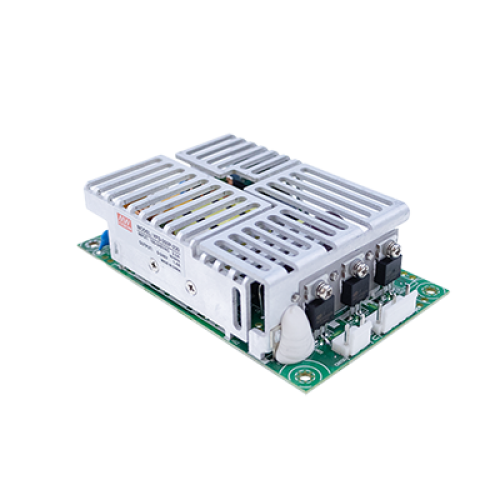

VFD-250P-230
250W 0 ~ 240VAC 1A AC-AC Variable Frequency Drive with PFC Please ring us to discuss a great price for this product.Product Features
- 90 ~ 264VAC input, Built-in PFC function
- High surge current of 200% for up to 5 seconds
- Short circuit, Over current protections
- Controllable with external controller
- Multiple sensor controls
- Suitale for 200 ~ 240VAC class motors
- 3 years warranty
- 30ºC ~ +60°C wide operating temperature
- 5"x3" miniature size
- Fanless design for silent operation
Description
The VFD-250P-230 is a universal variable frequency drive power module providing integrated power stage, gate drivers and basic VFD sensors such as three-phase output current and temperature sensors. This product can be implemented for a three-phase motor drive solution by coordinating with an external motor drive controller at the logic level and analogue I/O. The power stage input is single phase full range from 90VAC to 264VAC with PFC function. The 3-phase motor output is up to 240V with 200% peak current capability. The compact size of 5"x3" and fanless design make it easy to integrate into all kinds of motor systems. The VFD-250P-230 is suitable for three-phase motor drives, such as BLDC, Induction motors, and SynRM applications.
