VFD-250P-48
250W 48VDC Input Variable Frequency Drive Please ring us to discuss a great price for this product.Product Features
- High surge current of 200%, for up to 5 seconds
- 3-phase switches with sensors in one unit for external control
- Sensor control options, including Current Sensor, DC bus voltage sensor and temperature sensor
- 30°C to +70°C wide operating temperature range
- Fanless design for no-noise operation and expanded lifetime
- 48Vdc input (20-55Vdc)
- 4" x 2" miniature size
Description

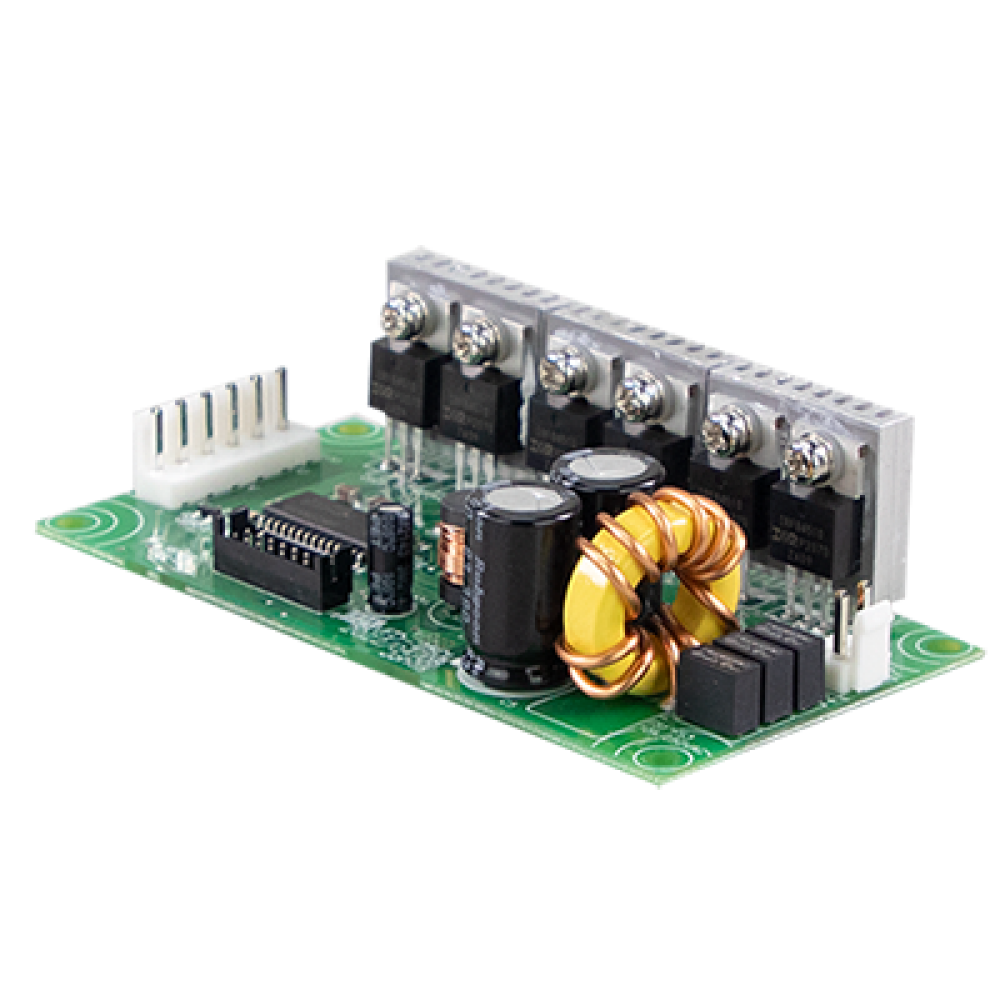

The VFD-250P-48 is a universal variable frequency drive power module providing integrated 3-phase switches with gate drivers and basic VFD sensors such as three-phase output current and temperature sensors. This product can be implemented for a three-phase motor drive solution by coordinating with an external motor drive controller at the logic level and analogue I/O. The three-phase motor output is supported up to 55Vdc with 200% peak current capability. The compact size of 4"x2" and fanless design make it easy to integrate into all kinds of motor systems. The VFD-250P-48 is suitable for three-phase motor drives, such as BLDC, Induction motors, and SynRM applications.
