VFD-350P-48
350W 48VDC Input Variable Frequency Drive Please ring us to discuss a great price for this product.Product Features
- High surge current of 200%, for up to 5 seconds
- Sensor control options, including Current sensor, DC bus voltage sensor and temperature sensor
- 4" x 2" miniature size
- 30°C to +70°C wide operating temperature range
- Controllable with external controller
- 48VDC input (20-55VDC)
- Fanless design for no-noise operation and expanded lifetime
Description

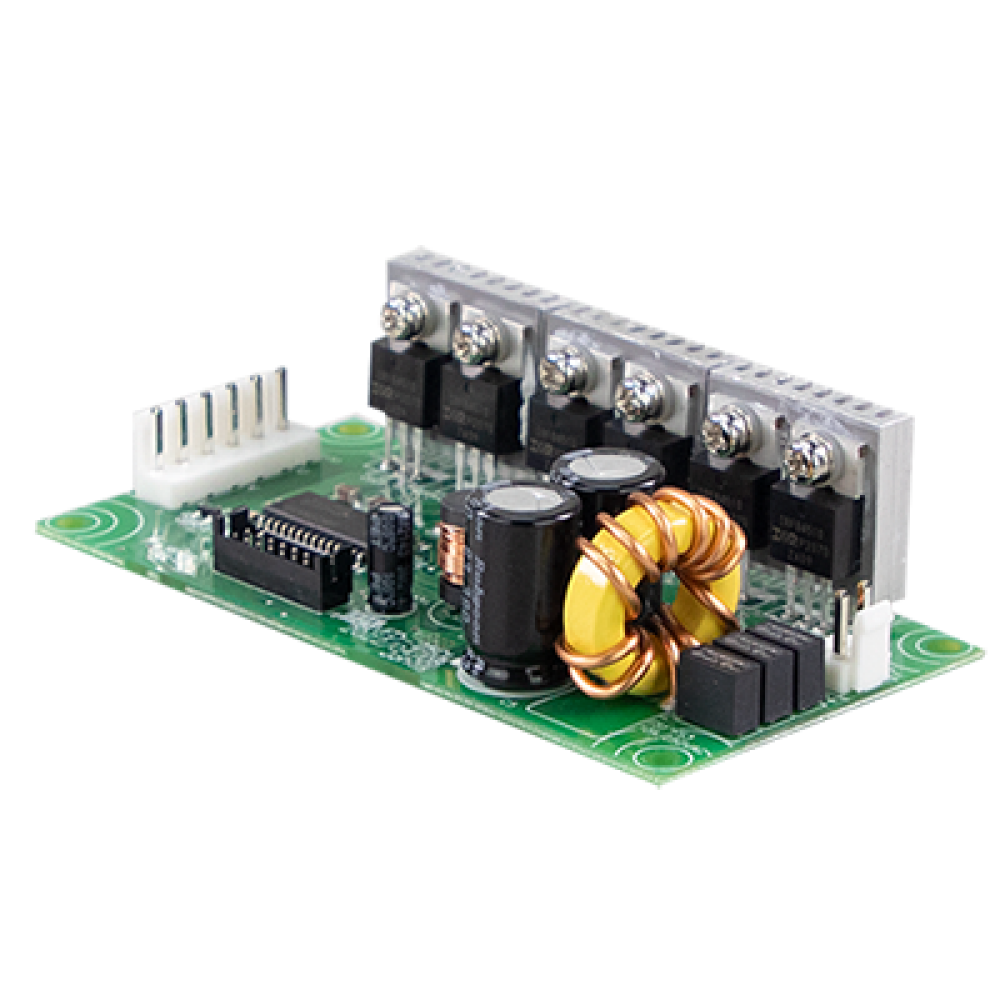

The VFD-350P-48 is an universal variable frequency drive power module providing integrated 3-phase switches with gate drivers and basic VFD sensors such as three phase output current and temperature sensors. This product can be implemented for a three phase motor drive solution by coordinating with an external motor drive controller in logic level and analog I/O. The three phase motor output is supported up to 55Vdc with 200% peak current capability. The compact size of 4"x2" and fanless design makes it easy to be integrated into all kinds of motor system. The VFD-350P-48 is suitable for three-phase motor drive, such as BLDC, Induction motor, and SynRM applications.
