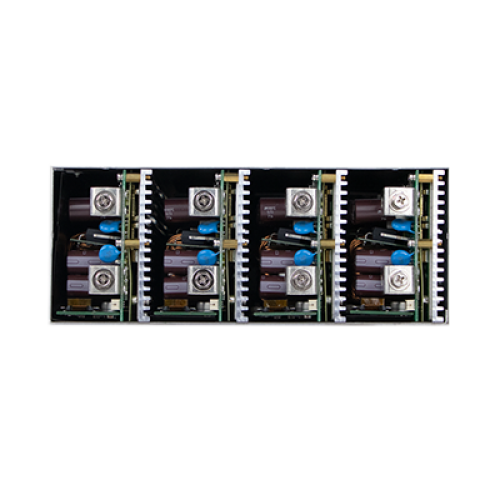

ERG-5000-T
5000W 10 ~ 60VDC Input Grid Type Inverter with Terminal Block Connection Please ring us to discuss a great price for this product.Product Features
- Modular design for flexible configuration
- Protections: Over voltage / Under voltage / Over temperature / Power / Grid fault / Communication error
- Wide input voltage range 10~60VDC / 60~420VDC by models
- 5 years warranty
- High efficiency up to 91%
- Flexible CC/CV operation modes
- Remote control and monitoring by CANBus protocol via CMU2A control console
- Maximum 64 units ERG-5000 series that can be connected
Description
The ERG-5000 series is a grid-type energy recycling power inverter that supports a 5KW rating and maximum up to 6KW. It can achieve up to 91% efficiency. CC and CV modes are selectable, and the four input channels can be used independently or connected in series or parallel, offering flexible combinations for various applications. Moreover, the ERG-5000 series also provides remote control and monitoring functions by using CMU2A or the CANBus protocol for data analysis and remote monitoring. ERG-5000 supports 1-~60VDC input voltage & ERG-5000H supports 60~420VDC input voltage.
Style
- Terminal Blocks
