SDX-6200-G48
200W 48VDC Input ATX12V 1U Power Supply Please ring us to discuss a great price for this product.Product Features
- 3.3V & 5V VRM design
- Input polarity reverse protection
- 2 years warranty
- Soft start function, low inrush current
- Altitude during operation up to 4000M
- Input and output isolation
- Meet Intel ATX 2.01 / ATX 2.31 / ATX 12V / EPS
- UL, cUL, CB, CE approved
- High efficiency and reliability
Description

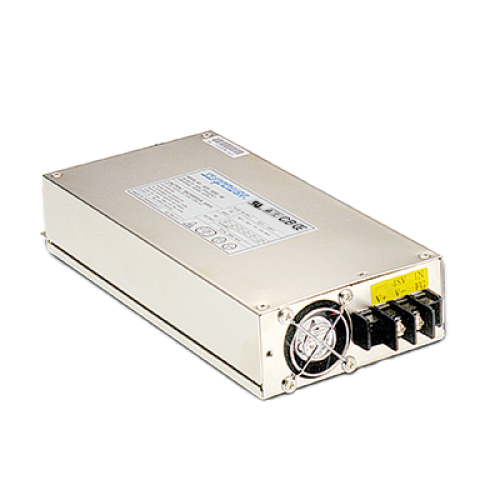

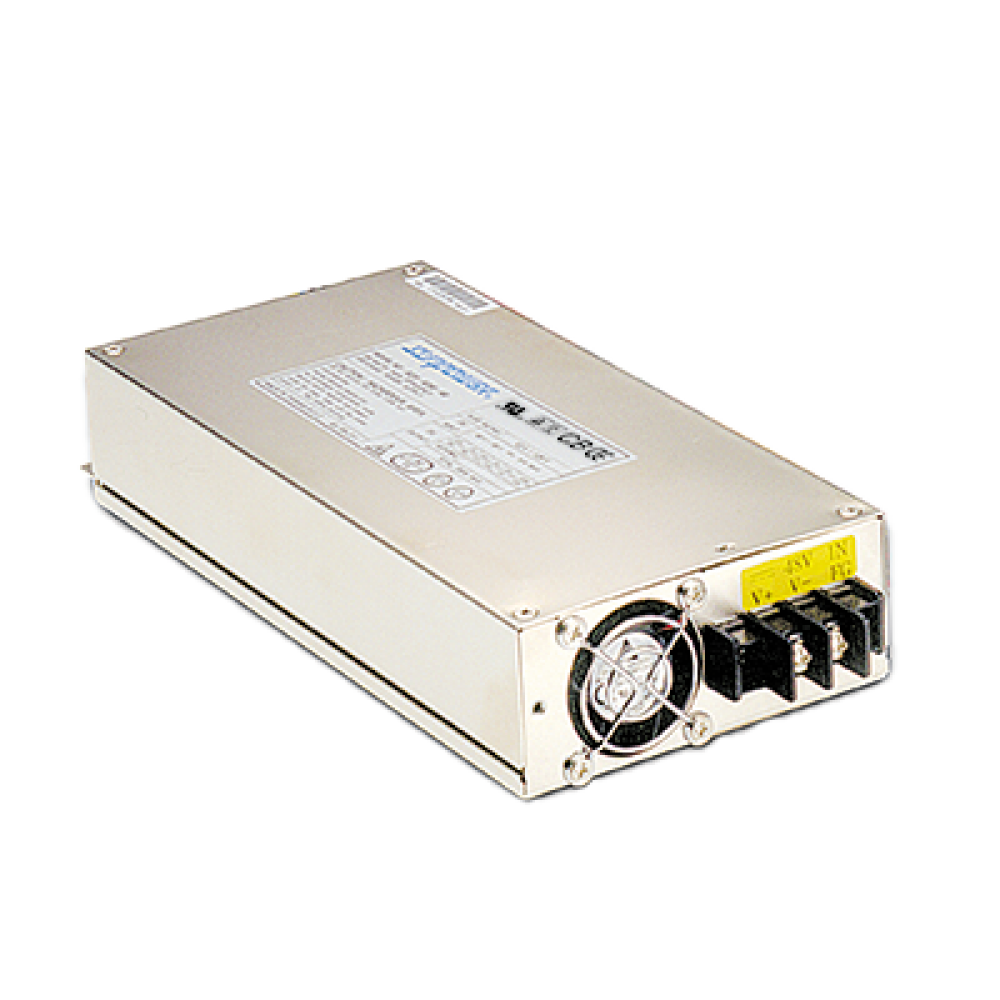

The SDX-6000-G48 Series is a compact, high-efficiency DC-DC ATX power supply series offering output capacities of 200W (SDX-6200-G48), 250W (SDX-6250-G48), and 300W (SDX-6300-G48) from a wide 36–72V DC input range, with 48V nominal. Engineered for 1U form factor systems, it features 3.3V and 5V VRMs, soft start, full protection circuitry (OVP, OLP, SCP, OTP), and complies with Intel ATX and EPS power standards.This PSU series supports up to 4000M operating altitude and uses forced-air cooling via an integrated DC fan, making it ideal for industrial embedded PCs and telecommunications environments. UL, cUL, CE, and CB certified for global compliance.
