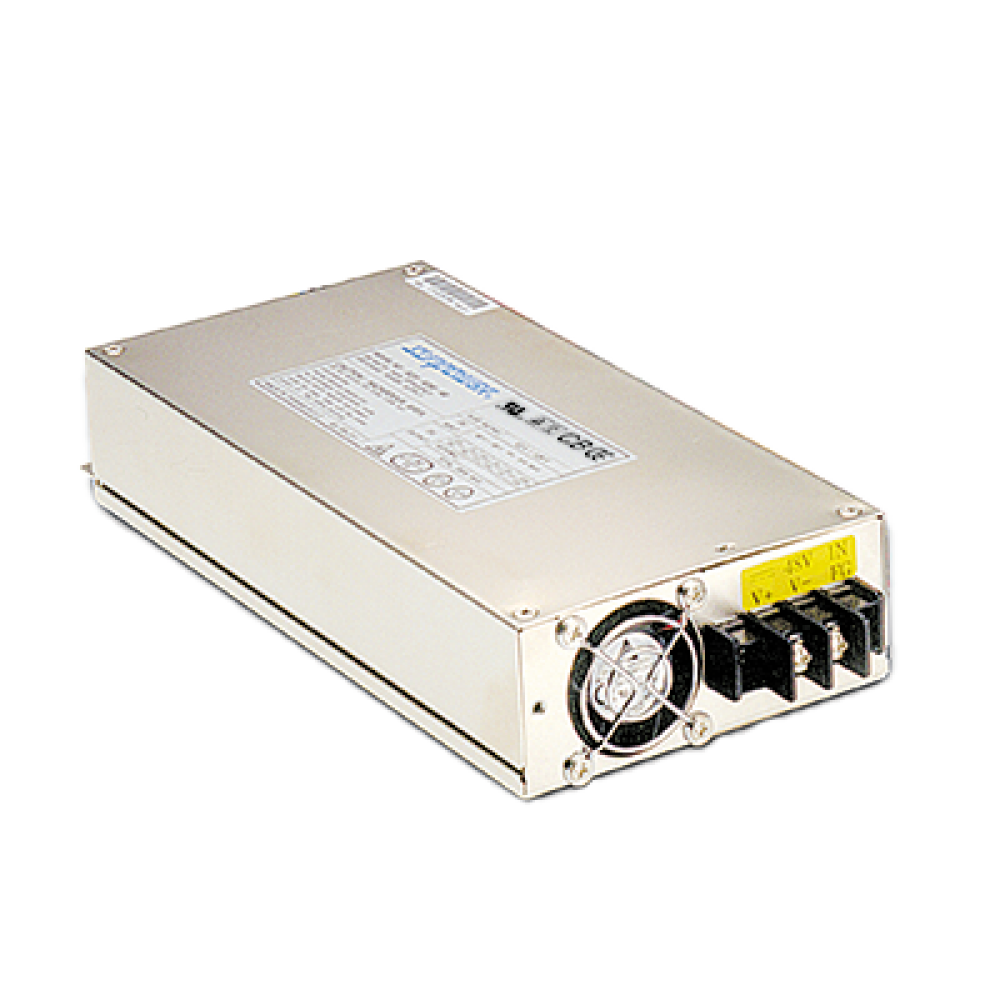

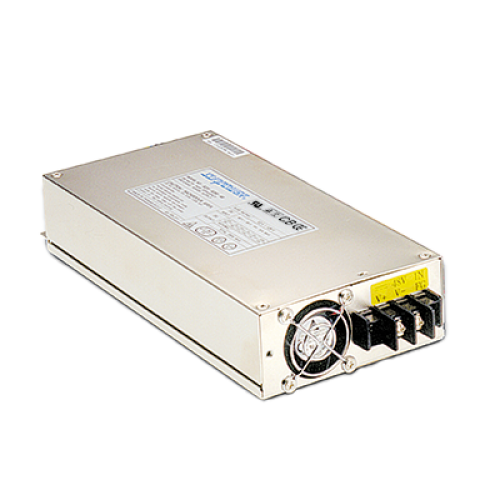

SDX-5250-G24
250W 24VDC Input ATX12V 1U Power Supply Please ring us to discuss a great price for this product.Product Features
- 2 years warranty
- High efficiency and reliability
- Power Good signal and PS-ON signal support
- Operates at altitudes up to 4000M
- UL, cUL, CB, and CE approved
- Built-in 3.3V and 5V standby output
- Compliant with ATX 2.01 / ATX 2.31 / ATX 12V / EPS
- Input and output isolation
Description
The SDX-5200-G24 and SDX-5250-G24 series are compact, high-reliability DC-DC power supplies designed for ATX12V-compatible systems operating from a 24V DC input. Delivering 200W or 250W total power, they offer isolated outputs, built-in standby voltages (3.3V & 5V), and support essential ATX/EPS features such as Power Good and PS-ON signals. With wide input voltage tolerance (19–32V) and protections including short circuit, over voltage, and over load, these units are ideal for high-altitude, industrial, and server-grade environments. Forced-air cooling ensures reliable performance up to 4000 meters altitude, with low ripple noise and high efficiency. These units meet global safety and EMC standards, providing a dependable solution for mission-critical applications.
