SDX-6250-G24

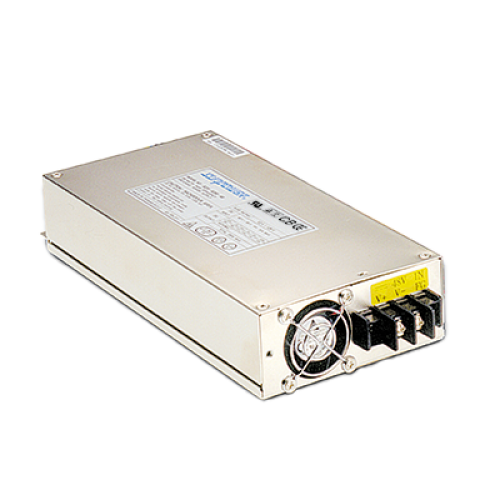

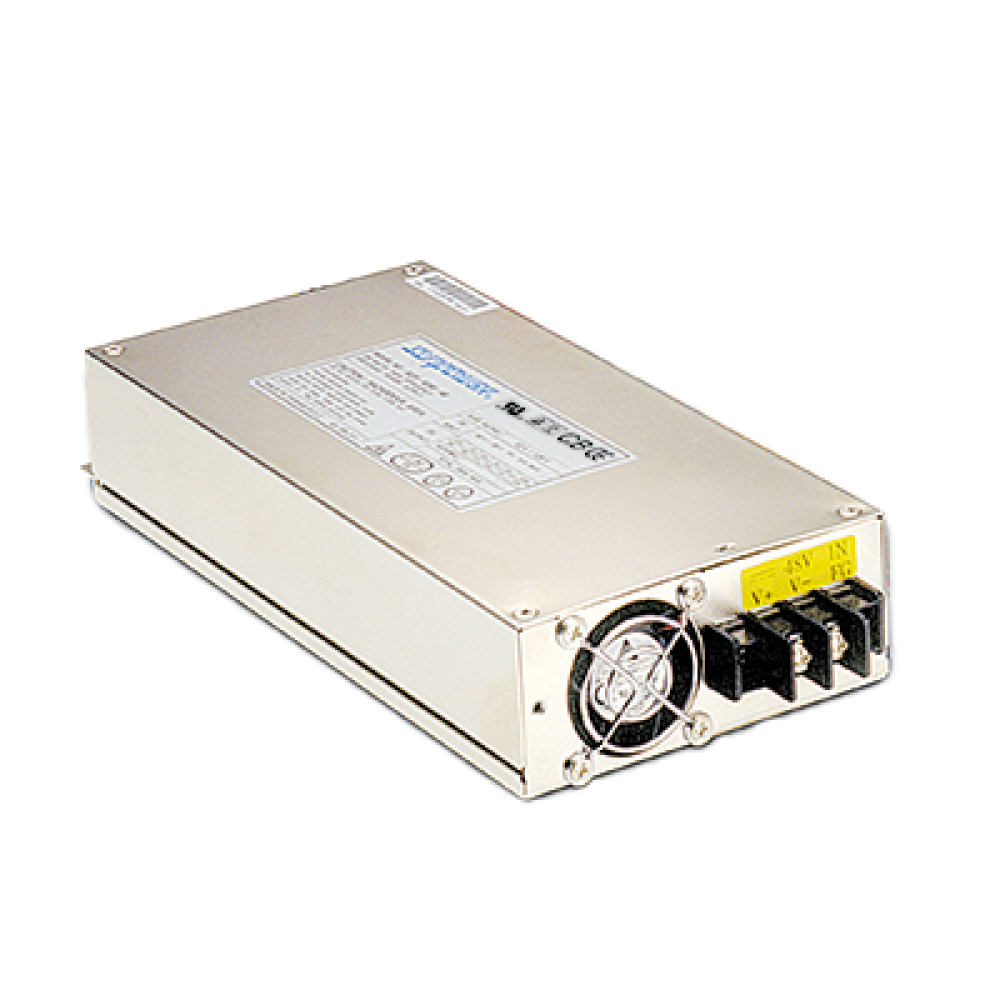

250W 24VDC Input ATX12V 1U Power Supply (SDX-6250-G24) Please ring us to discuss a great price for this product.Product Features
- High efficiency and reliability
- Input polarity reverse protection
- Altitude during operation up to 4000M
- Input and output isolation
- Meet Intel ATX 2.01 / ATX 2.31 / ATX 12V / EPS
- Soft start function, low inrush current
- 2 years warranty
- Over voltage, over load & short circuit, over temperature protection
- 3.3V & 5V VRM design
Description
The SDX-6000-G24 series from Sunpower includes the SDX-6200-G24 and SDX-6250-G24, which are 200W and 250W 24VDC input ATX12V 1U power supplies. Designed to support embedded and rack-based computer systems, these compact PSUs offer reliable DC-DC conversion within a 19V to 32V input range, delivering multiple regulated outputs including 5V, 3.3V, 12V, -12V, -5V, and 5Vsb.Each unit integrates VRM technology for stable low-voltage rails, power good and PS-ON signals, and a full suite of protection (OVP, OLP, SCP, OTP). Forced air cooling and Intel ATX/EPS standard compliance make them suitable for industrial-grade applications and systems running at up to 4000 metres altitude. Safety approvals include UL, CE, CB, and cUL.
