SDX-6350-G96

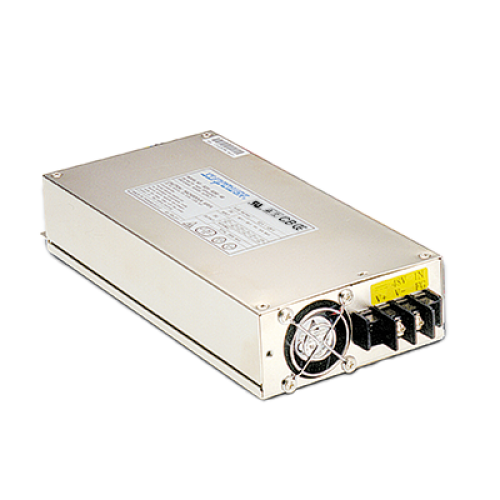

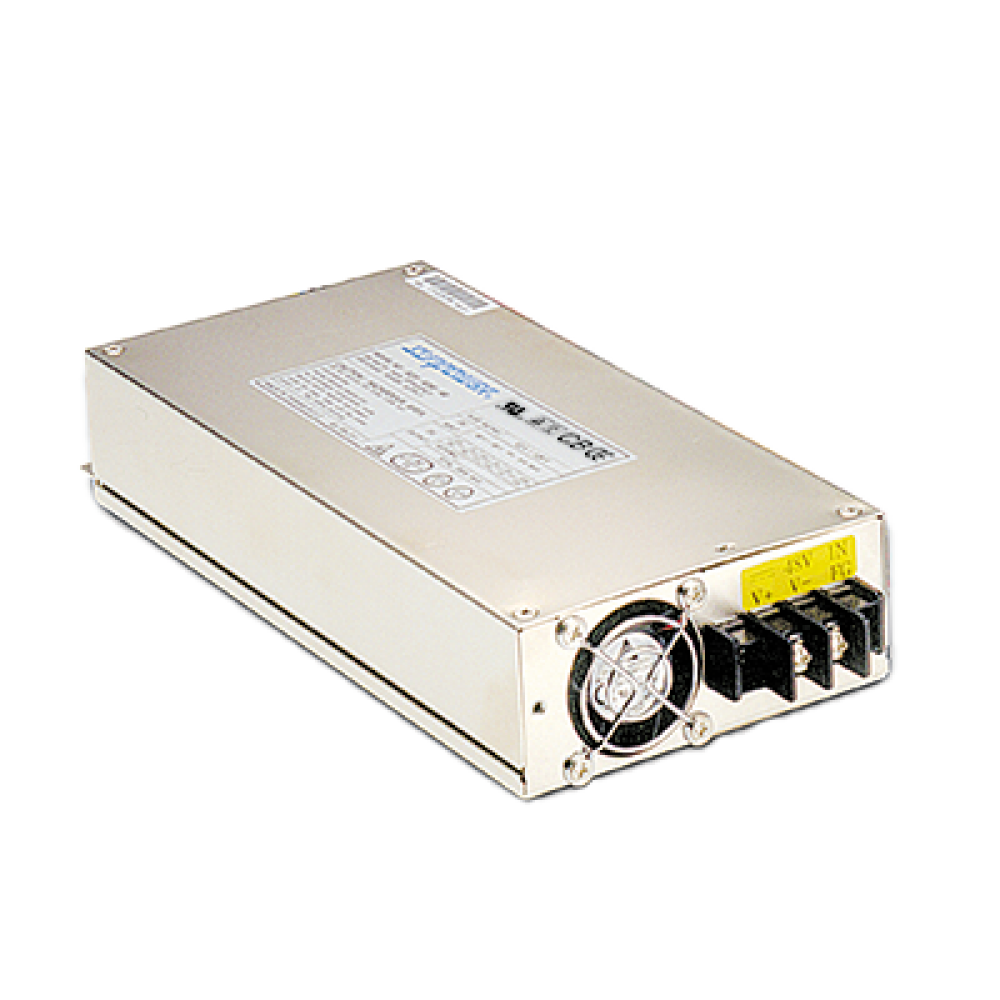

350W 96VDC Input ATX12V 1U Power Supply Please ring us to discuss a great price for this product.Product Features
- 100% full load burn-in test
- High efficiency and reliability
- Input and output isolation
- 2 years warranty
- Dual-rail, 12V design, capable of supplying higher power output
- Input polarity reverse protection
- Meets Intel ATX 2.01 / ATX 2.31 / ATX 12V / EPS standards
- Soft start function, low inrush current
- 3.3V & 5V VRM design
Description
The SDX-6350-G96 is a compact, high-efficiency 350W DC-DC power supply designed for 1U systems and ATX-based industrial applications. Accepting a wide input voltage range of 72V to 144V DC (typically 96V), it supports multiple regulated outputs including 3.3V, 5V, ±12V, -5V, and 5V standby rail, with built-in VRM design for system compatibility. With 100% full load burn-in, protective functions for over-voltage, overload, reverse polarity, short circuit and thermal events, and approvals from UL, cUL, CB, and CE, it’s ideal for reliable operation in demanding environments up to 4000 meters altitude. The unit supports Intel ATX and EPS standards and includes both Power Good and PS-ON signal outputs.
