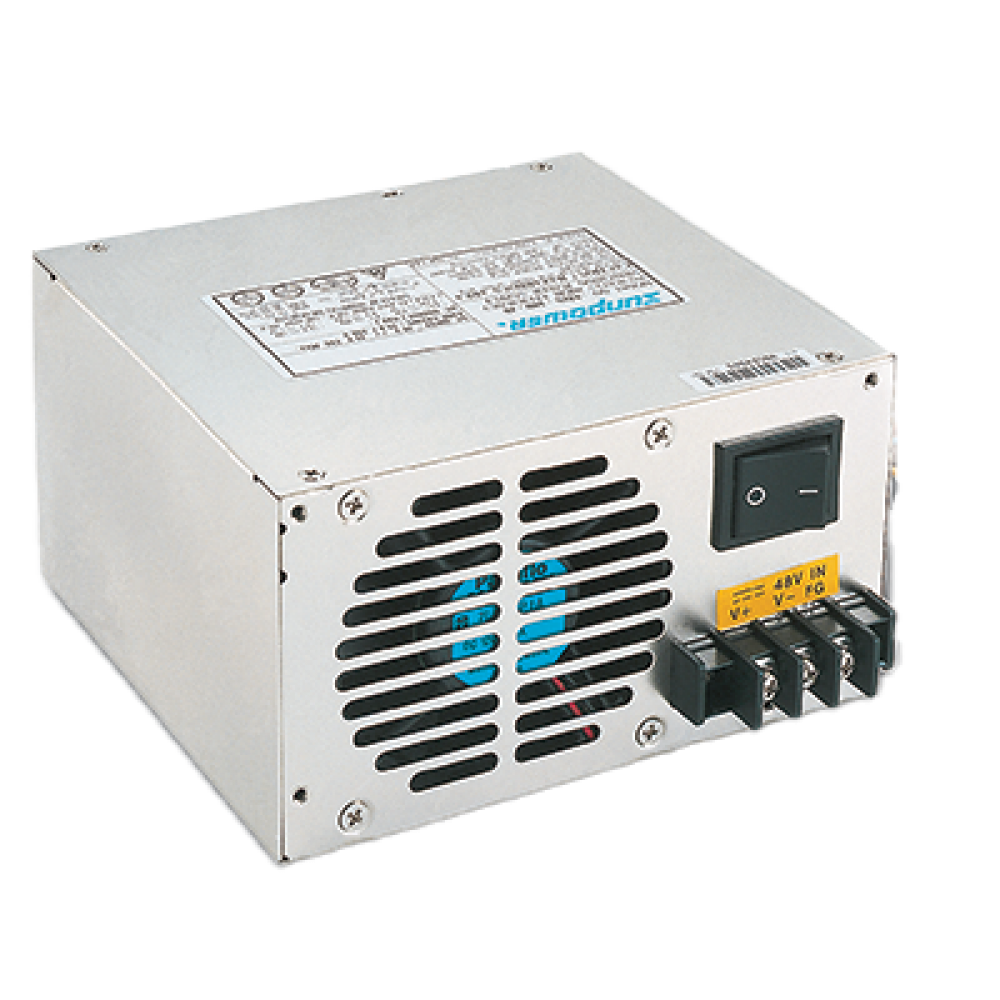

SDX-500-G48
500W 48VDC Input ATX 1U Power Supply Please ring us to discuss a great price for this product.Product Features
- Optional -5V output
- High efficiency and reliability
- 3-year warranty
- Input and output isolation
- 100% full load burn-in test
- Complies with Intel ATX 2.31
- 3.3V & 5V VRM design
- Complies with LVD safety standards
- Soft start function to reduce inrush current
Description
The SDX-500-G48 is a 500W high-reliability DC-DC converter engineered for advanced ATX systems. Accepting a wide 36V to 72V DC input (typically 48V), it delivers six stable outputs including 3.3V, 5V, ±12V, -5V, and 5Vsb, supporting modern embedded and industrial computing environments. Featuring full protections, VRM support, and signal outputs for system status, the SDX-500-G48 is ideal for power-critical environments requiring performance and safety. Housed in a 150 x 140 x 86 mm enclosure, it uses forced-air cooling and ensures over 100K hours of MTBF.
