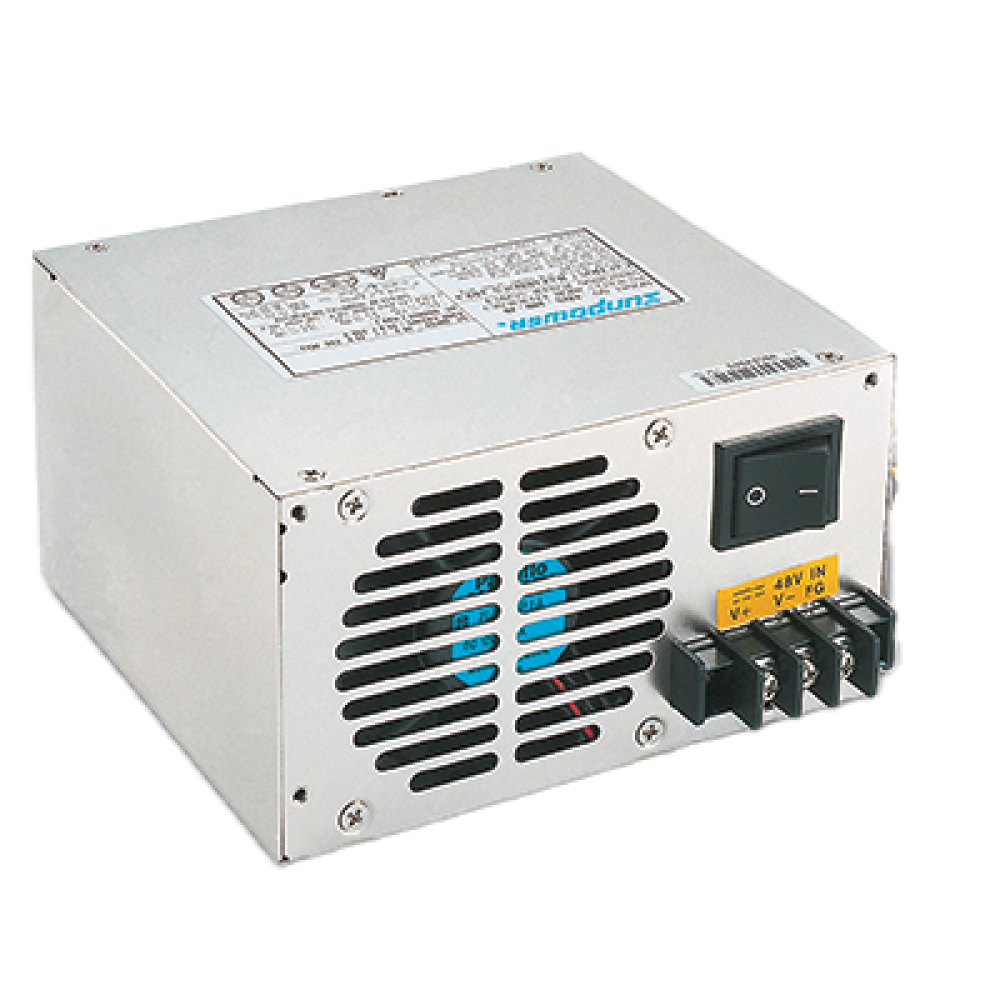

SDX-600-G96
600W 96VDC Input ATX PC Power Supply Please ring us to discuss a great price for this product.Product Features
- 600W DC-DC ATX power supply with input/output isolation
- Full 100% load burn-in test
- Forced-air cooling with integrated DC fan
- 3.3V & 5V VRM design with optional -5V output
- Supports Intel ATX 2.01 / 2.31 / ATX 12V specifications
- 3-year warranty
- Built-in power good and PS-ON signal outputs
- High efficiency (typ. 84%) and high reliability
- LVD approved
Description
The SDX-600-G96 is a high-performance 600W DC-DC ATX power supply designed for systems running on a 96VDC input. With 6 regulated outputs—5V, 3.3V, 12V1, 12V2, -5V, -12V, and 5Vsb—it meets Intel ATX 2.01 / 2.31 and ATX 12V standards, making it suitable for industrial or embedded applications.The PSU features full input/output isolation, built-in VRM design, and protection circuits covering over voltage, over current, overload, and short circuit events. Its integrated fan cooling system ensures reliable operation even under full load, with derating applied beyond 45°C.Key performance features include a power good signal, PS-ON control, and ripple suppression across all outputs. With a compact footprint of 150 x 140 x 86 mm and up to 106K hours MTBF, this unit delivers robust performance for battery-based or high-reliability DC systems.
