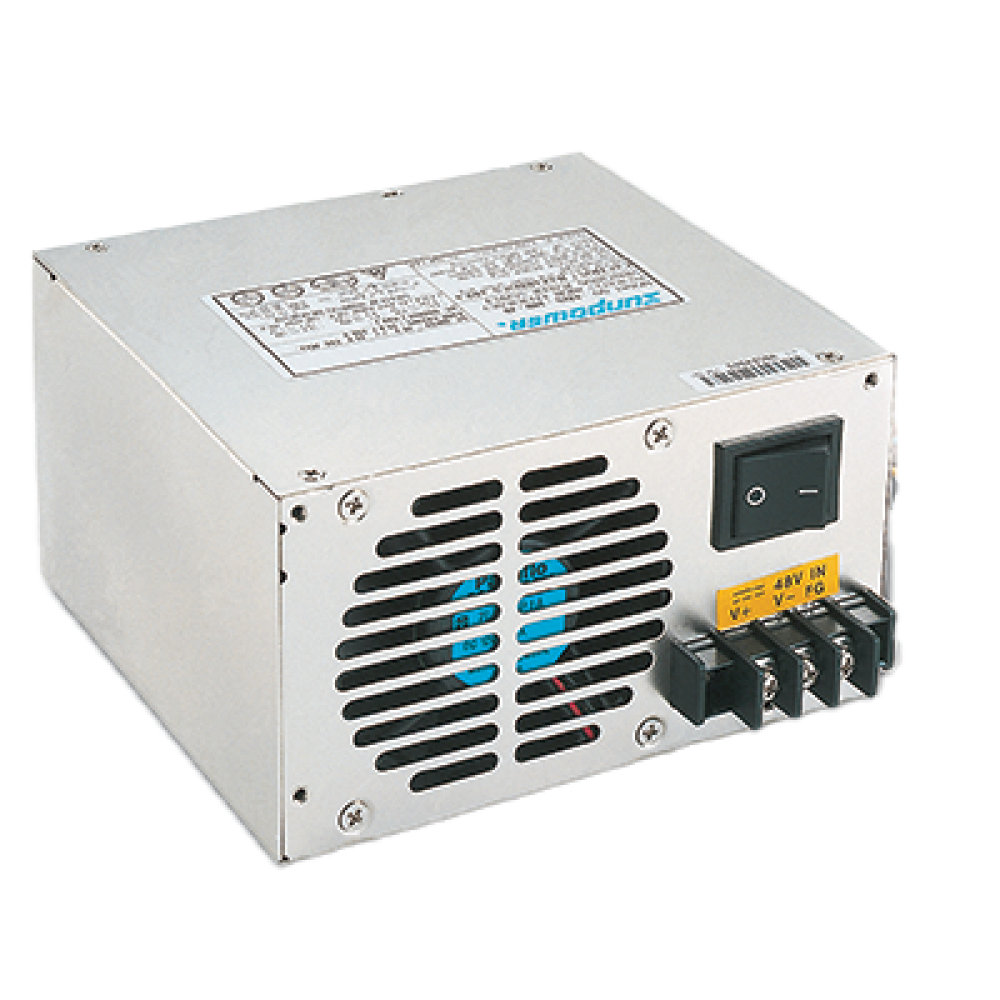

SDX-650-G96
650W 96VDC Input ATX PC Power Supply Please ring us to discuss a great price for this product.Product Features
- 100% full load burn-in test
- 3 years warranty
- Meet Intel ATX 2.01 / ATX 2.31 / ATX 12V
- 3.3V & 5V VRM design
- 5V output option
- LVD approved
- Input and output isolation
- Soft start function, low inrush current
- High efficiency and reliability
Description
The SDX-650-G96 is a robust 650W DC-DC ATX power supply engineered for demanding industrial computing environments. Accepting a wide 96VDC nominal input (72–144VDC range), it offers reliable power across six regulated outputs with integrated VRM support for 3.3V and 5V rails. Designed for optimal safety and system integrity, it features multiple layers of protection including over voltage, current, load, and short circuit safeguards. A forced-air cooling fan ensures thermal stability, while the PSU meets key ATX and LVD standards, making it suitable for critical embedded systems and industrial control platforms. The unit includes soft start, input/output isolation, and status signals for seamless integration.
