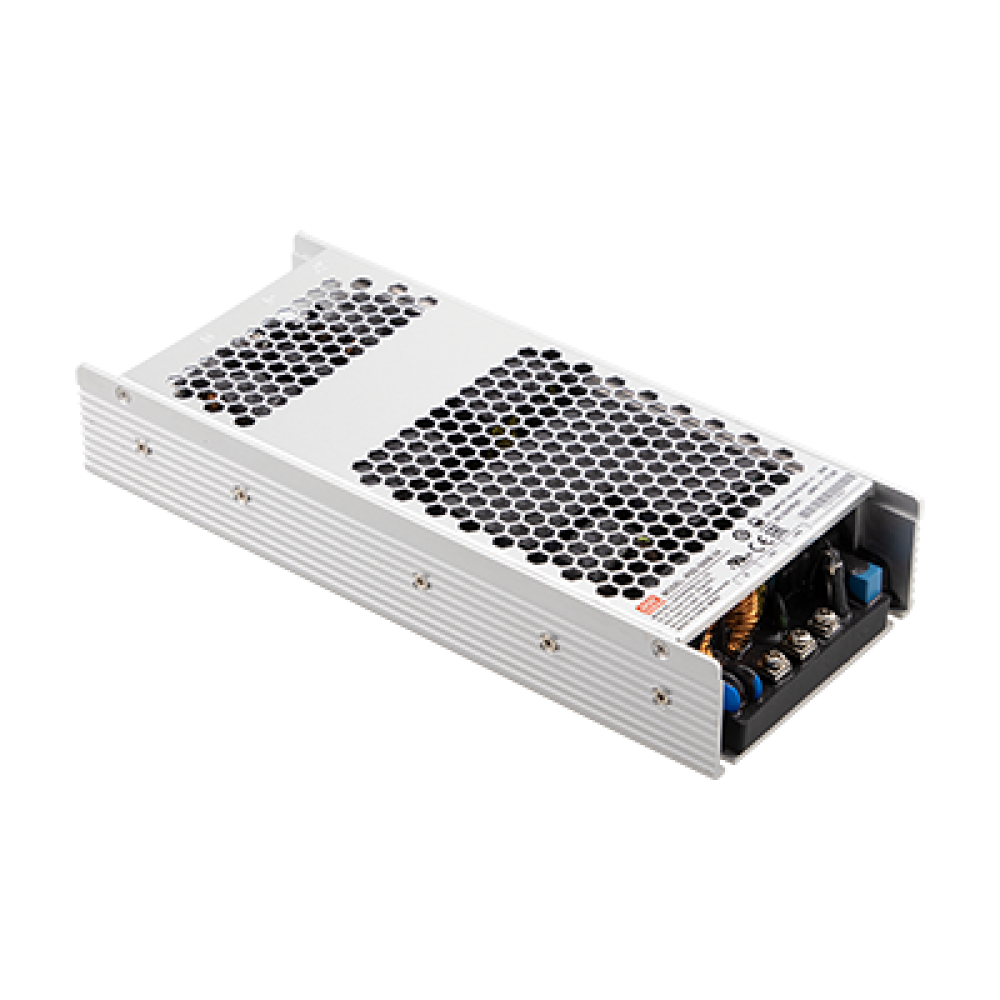

RSD-500B-48
422.4W 24VDC Input 48VDC Output Railway Converter Please ring us to discuss a great price for this product.Product Features
- 3 years warranty
- Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
- DC output adjustable
- Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity / Input under voltage protection
- 40ºC ~ +80°C wide operating temperature
- 2:1 wide input range
- Fanless design, half encapsulated, cooling by free air convection
- 1U low profile 41mm
- 4KVdc I/O isolation (Reinforced isolation)
Description
RSD-500 series is a 500W enclosed type reliable railway DC-DC converter. This series is compliant with BS EN/EN50155 / BS EN/EN45545-2 railway standard, constituting three types of models with 2:1 wide but different input ranges: 16.8~33.6V / 33.6~67.2V / 67.2~154V, suitable for railway and all kinds of transportation systems exploiting the frequently used standard input voltages such as 24V, 36V, 48V, 72V, 96V and 110V. Various output voltages, 12V, 24V and 48V are available for selection.This series has the capability of working under -40~+80°C, low ripple and noise, supreme EMC characteristics, 4KVdc I/O isolation, a low enclosure profile of 41mm and an interior with semi-potted silicone. It not only fits well the in-car systems or the facilities by rails for railway, trams and buses, but also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, etc.
